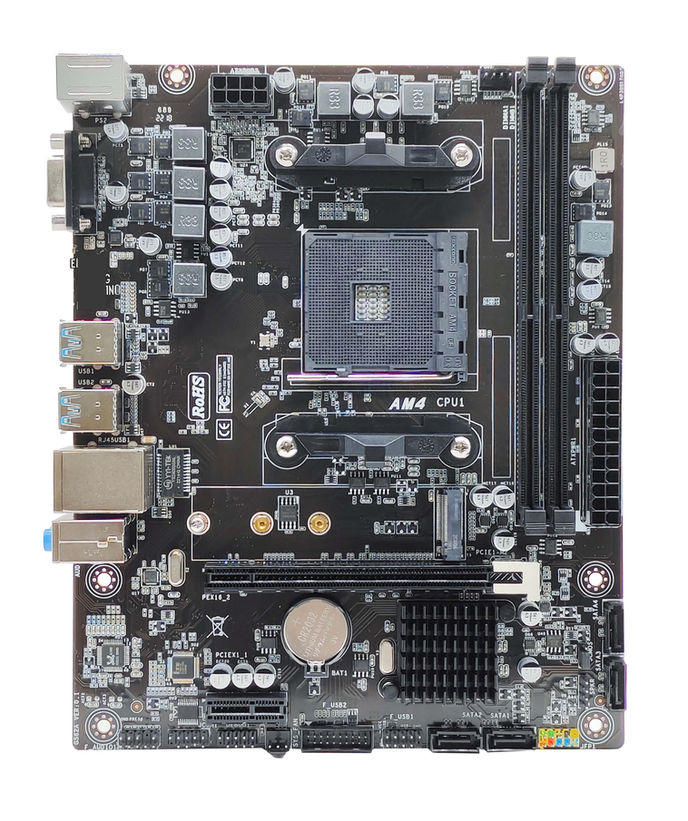

Name&Model : AX-MBAMA520


CPU support : Supports AMD Socket AM4 AMD RYZEN

Chipset : AMD A520

Memory: 2x288-pin DDR4 SDRAM slots
               Memory up to 32GB
               Supports dual channel DDR4



LAN: with 10/100/1000Mbps LAN onboard

Audio : With 6-channal HD Audio Codec onboard
            provides front audio interface
            provides front stereo mic interface

Expansion slots : 1 x PCI Express x16 slot

                             1 x PCI Express x1 slot

                             1 x NVME-M.2 connector


I/O connectors:1 x PS/2 keyboard port,

                           1 x PS/2 mouse port
                           2 x USB,compatible with USB2.0/1.1
                          4 x USB,compatible with USB3.0
                          1 x VGAport
                          1 x HDMI port
                          1 x RJ45 port
                          1 x 3-in-1 Audio port

                               (Line In/Line Out/MIC IN)

Form factor:Micro-ATX architecture(17x22cm)

Please click on the right to preview
or download the data sheet
