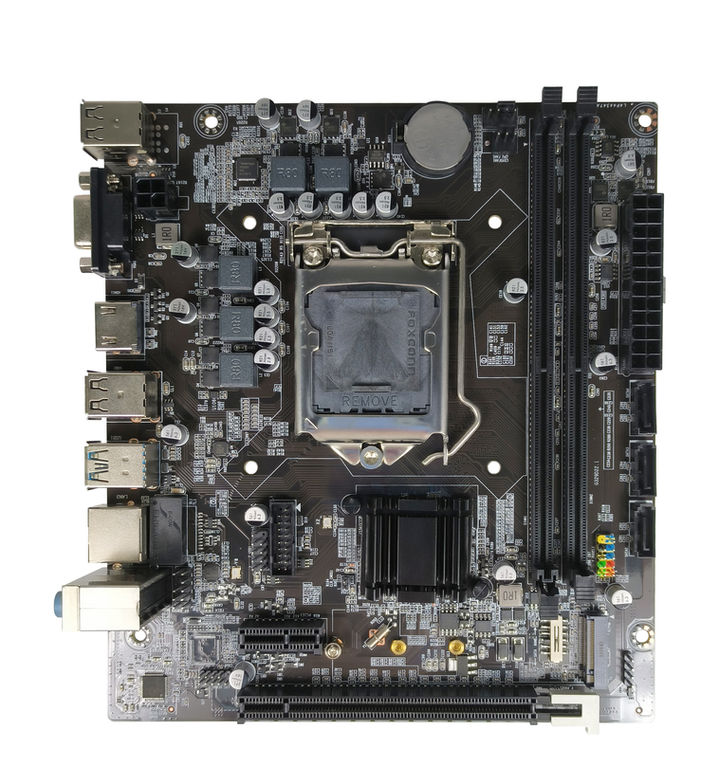

Name&Model :  AX-MBAIH110 (LGA1151)


CPU support :  Supports 6/7/8th(SKYlake).Intel                              14nm CPUs


Chipset : Intel H110 Express Chipset


Memory: 2 x 240-pin DDR4 SDRAM slots

              Memory up to 32GB

              Supports dual channel DDR4

              1066/1333/1600/1866MHZ

LAN: with 10/100/1000Mbps LAN onboard

Audio : with 6-channel HD Audio Codec onboard

            provides front audio interface;

            provides front stereo mic interface;

Expansion slots : 1 x PCI Express x 16 slot

                             1 x NVME-M.2 connector

I/O connectors:2 x USB,compatible with USB3.0

1 x VGA port

1 x HDMI port

1 x RJ45 port

1 x 3-in-1 Audio port(line In/Line Out/MIC IN)

1 x 24-pin ATX power connector

1 x 4-pin ATX 12V power connector

1 x USB2.0 connector,can support 2 x USB 2.0

1 x USB3.0 connector,can support 2 x USB 3.0

1 x F_AUDIO connector

1 x F_PANEL connector

1 x SPEAKER connector

2 x FAN connector

4 x serial SATA/6GB/S connector port

1 x LPC_DEBUG connector

Form factor:Micro-ATX architecture(17 x 19cm)
